Designs - Autodesk AutoCAD

Condominium Project (Design)​

​​
Creating a condominium for an actual site in London, ON was the purpose of this project. Having a finite area and working around the oddly shaped lot gave some obstacles, especially for onsite parking. This was solved with underground parking allowing for a greater and more friendly pedestrian realm on site.



This was the 6th semester project for AutoCAD class at Fanshawe College.

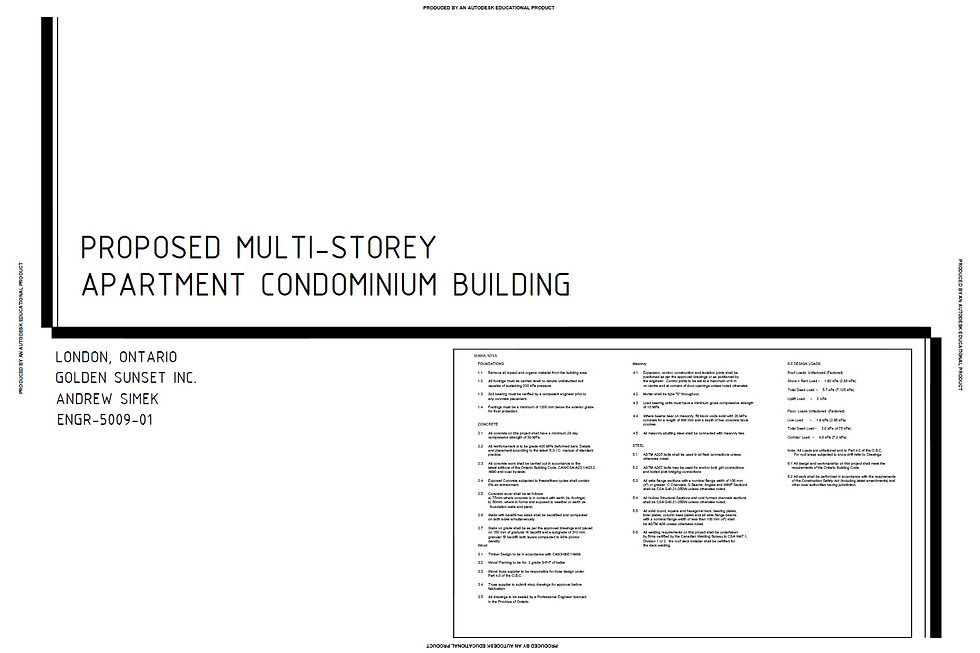

Condominium Project

(Structural Engineering)

​​
Along with the the design set of the condominium, a structural set was required for the Structural Engineering class at Fanshawe College.

Renovation Project

​​
The purpose of this project was to renovate the interior and design a new exterior look for an existing building in London, ON. This involved demolition and design phases; working around the existing structural construction.



This was the 5th semester project for AutoCAD class at Fanshawe College.

Bi-Level Townhouse

​​
This project, as seen in the Softplan section, was to be a two-storey max. townhouse equipped for a wheelchair bound individual. The first floor was constructed to the Facility Accessibility Design Standards (FADS) as per London, ON strict barrier-free standards.



This was the 4th semester project for AutoCAD and Structural Engineering classes at Fanshawe College.
